AQUASOLAR

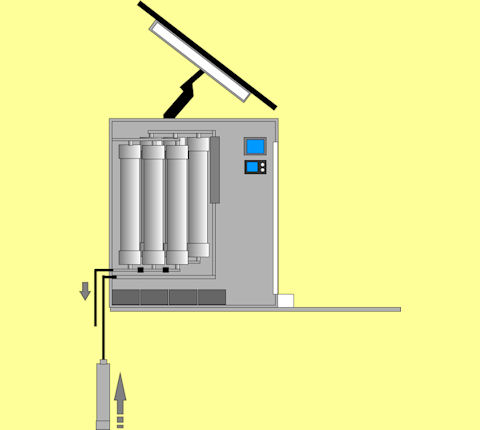

Small communities in remote locations can now take advantage of the same membrane technology used by large-scale water treatment plants in a compact, self-contained renewable-energy design.

Aquasolar provides high-quality potable water by physically removing pathogens, particulates and turbidity from virtually any water source including rivers, lakes, streams, ponds, shallow wells and springs.

Aquasolar can produce 70.000 liters of drinking water per day without the use of external energy, thereby allowing placement in locations without generators or any energy supply.

  • Utilizes solar power only, thus can be used in remote locations, anywhere around the world
  • Membranes physically block and remove pathogens and particulates from any non-saline water supply
  • Significantly reduces colloids, turbidity, and organics
  • Utilizes the same membrane technology chosen by large scale water filtration plants
  • Effectively treats ground, surface or cistern water sources at the point-of-entry
  • Automated and efficient self-cleaning cycle flushes impurities
  • Requires minimal water pressure to operate efficiently
  • Capable of rain water harvesting for reuse as drinking water
Operation mode Dead end, timing flushing & backwash
Membrane characteristic Hydrophilic / double skin
Membrane material PAN
MWCO (Dalton) 50,000
Membrane area 20 m2
Number of hollow fiber 12000
Inlet and outlet diameter DN25
FLUX 3000 LITERS / HOUR
Dimensions 2400 x 2400 x 2500 mm

BACTERIA

  • Escherichia Coli
  • Vibrio Cholera
  • Leptospira Interogans
  • Salmonella Paratyphi
  • Salmonella Typhi
  • Shigella Dysentriae
  • Shigella Boydi/S.sonnei
  • Campillobacter Jejunie
  • Yersinia Enterocolitica
  • Aeromonas
  • Legionella Pneumophilla

VIRUS

  • Hepatitis A & B
  • Poliovirus 1,2,3
  • Rotaviruses

PROTOZOA

  • Entomoeba histolica
  • Balantidum coli
  • Cryptosporidium
  • Giarda Lamblia

NEMATOD

  • Ascarts Lumbricoides
